Sectionlift 6 Modular Spreader Beams

SectionLift 6 Modular Spreader Beams

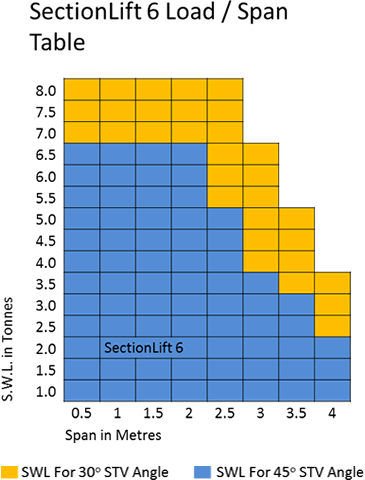

  • Minimum Beam Length: 500mm
  • Maximum Beam Length: 4m
  • Maximum Load Capacity: 8 tonnes up to 2m Long
  • 6 tonnes capacity at 3m span

Please note the loads shown above are conservative indications. The spreader beams are capable of increased loads at particular spans. If you have a specific application which falls just outside the limits shown please contact us.

Calculation for SWL of Each Single Leg Top Sling.
(2 required.)

For 30o STV Angle = Load x 0.58
For 45o STV Angle = Load x 0.70
For Maximum SWL (8t) @ 30o STV Angle = 4.7t
For Maximum SWL (8t) @ 45o STV Angle = 5.6t

Headroom (H) @ 30o STV Angle = L x 0.87
Headroom (H) @ 45o STV Angle = L x 0.50
