SectionLift 420 Modular Spreader Beams
- Minimum Beam Length: 1.5m
- Maximum Beam Length: 32m

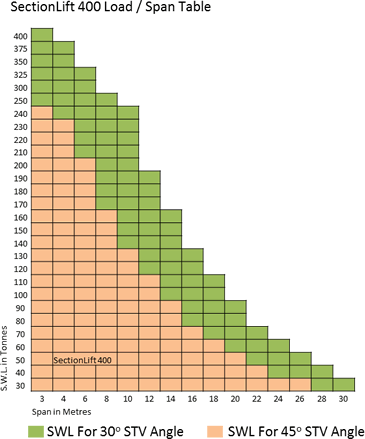

- Maximum Load Capacity: 400 tonnes up to 3.5m Long
- 240 tonnes capacity at 10m span
Please note the loads shown above are conservative indications. The spreader beams are capable of increased loads at particular spans. If you have a specific application which falls just outside the limits shown please contact us.
Calculation for SWL of Each Single Leg Top Sling.
(2 required.)
For 30o STV Angle = Load x 0.58
For 45o STV Angle = Load x 0.70
For Maximum SWL (400t) @ 30o STV Angle = 232t
For Maximum SWL (255t) @ 45o STV Angle = 179t
Headroom (H) @ 30o STV Angle = L x 0.87
Headroom (H) @ 45o STV Angle = L x 0.50
